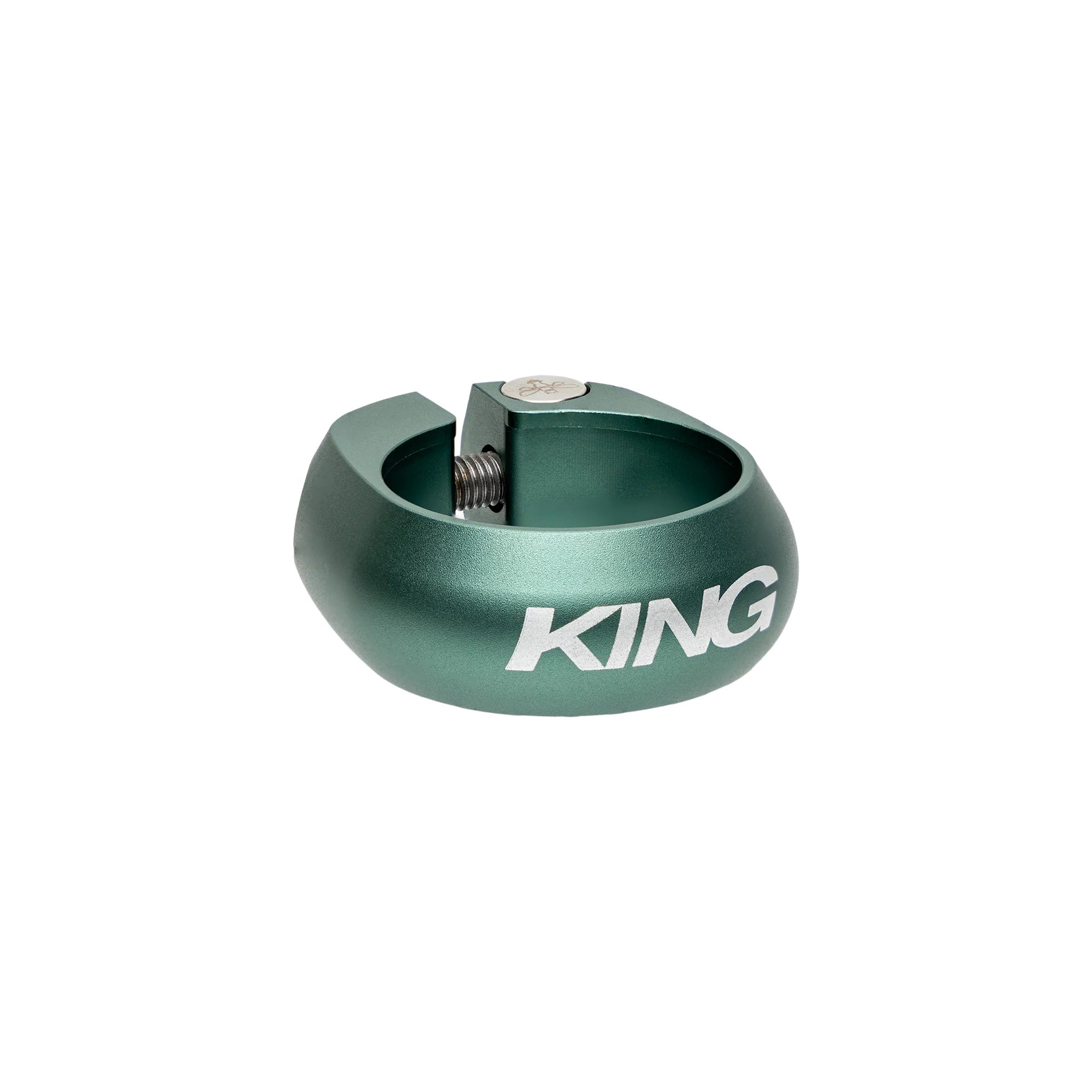

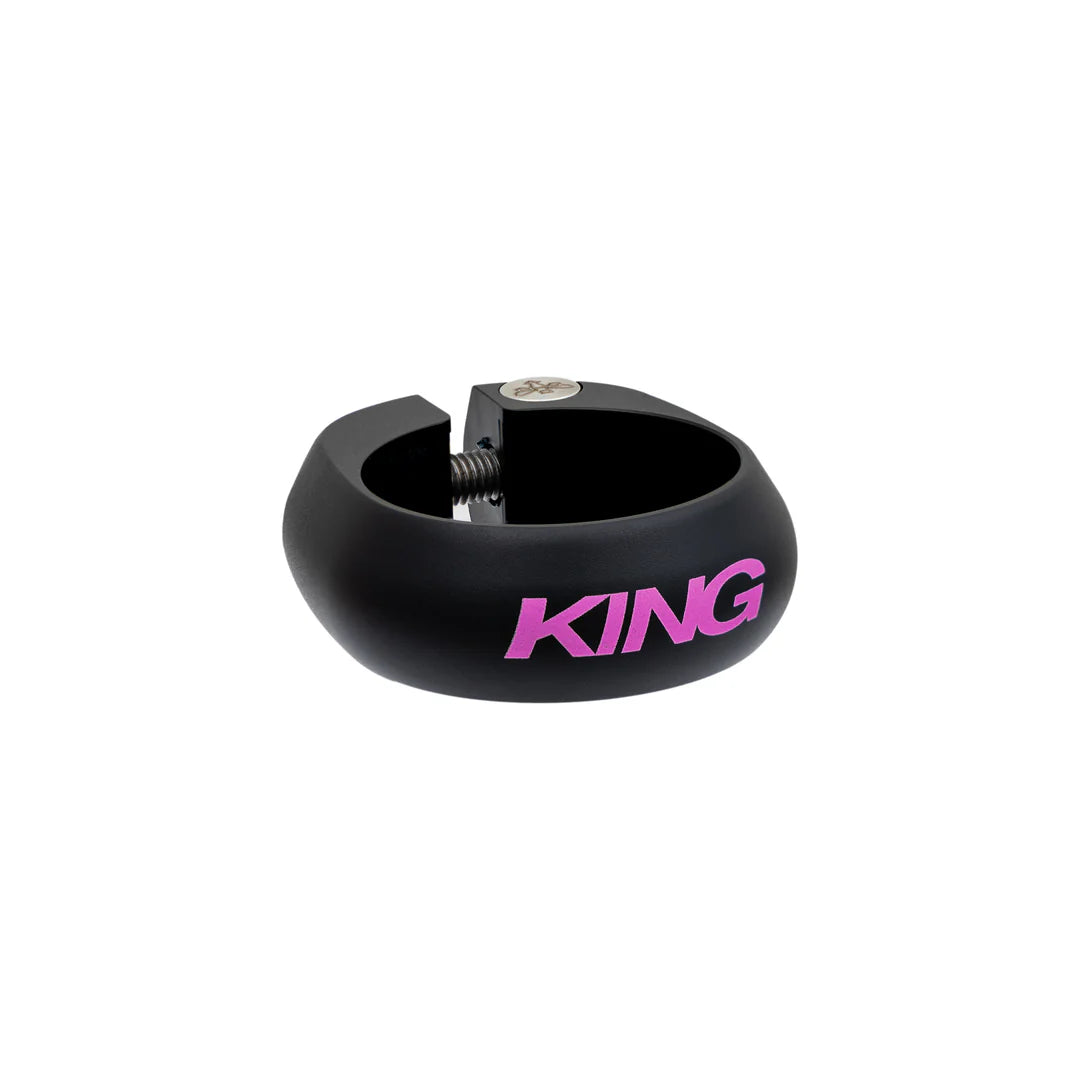

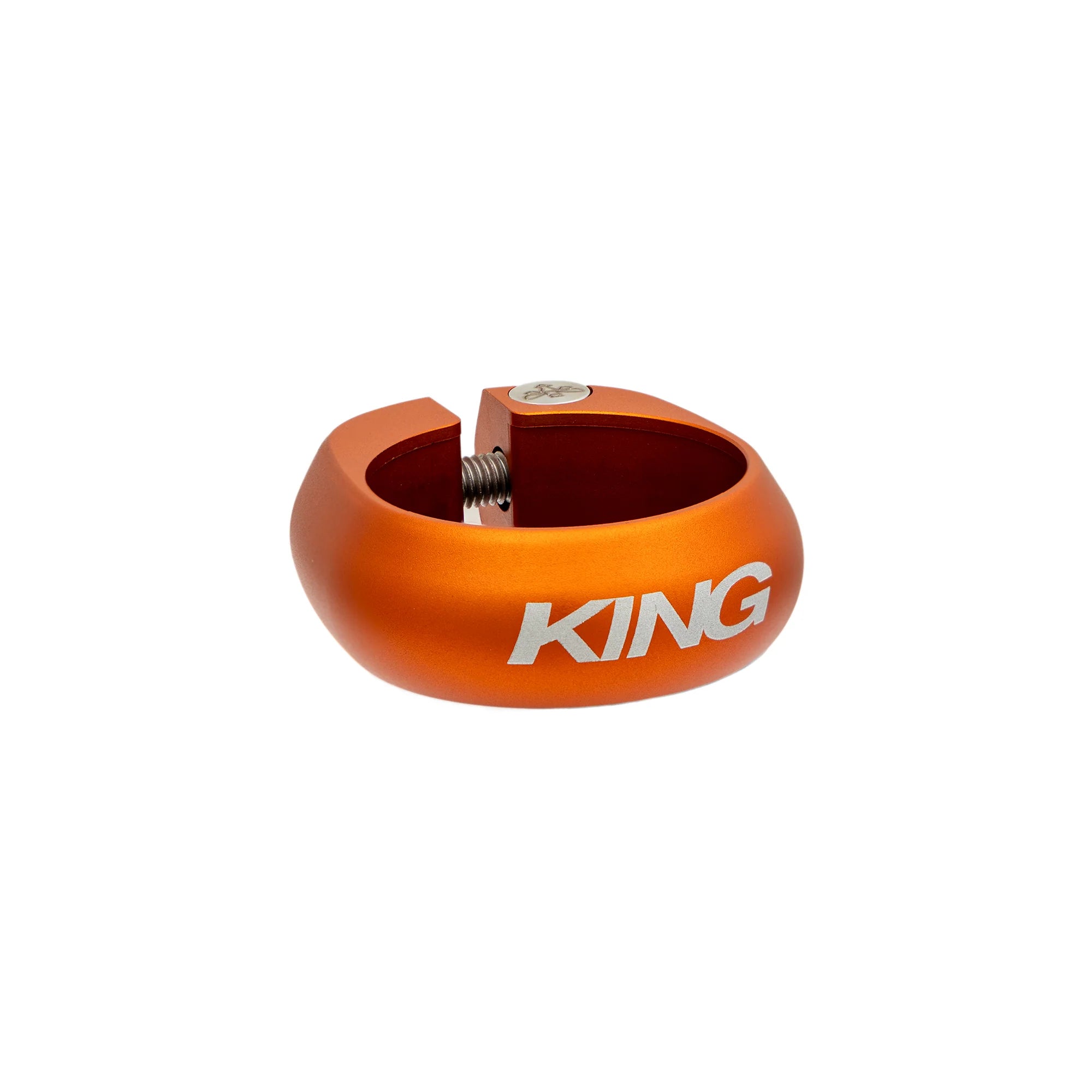

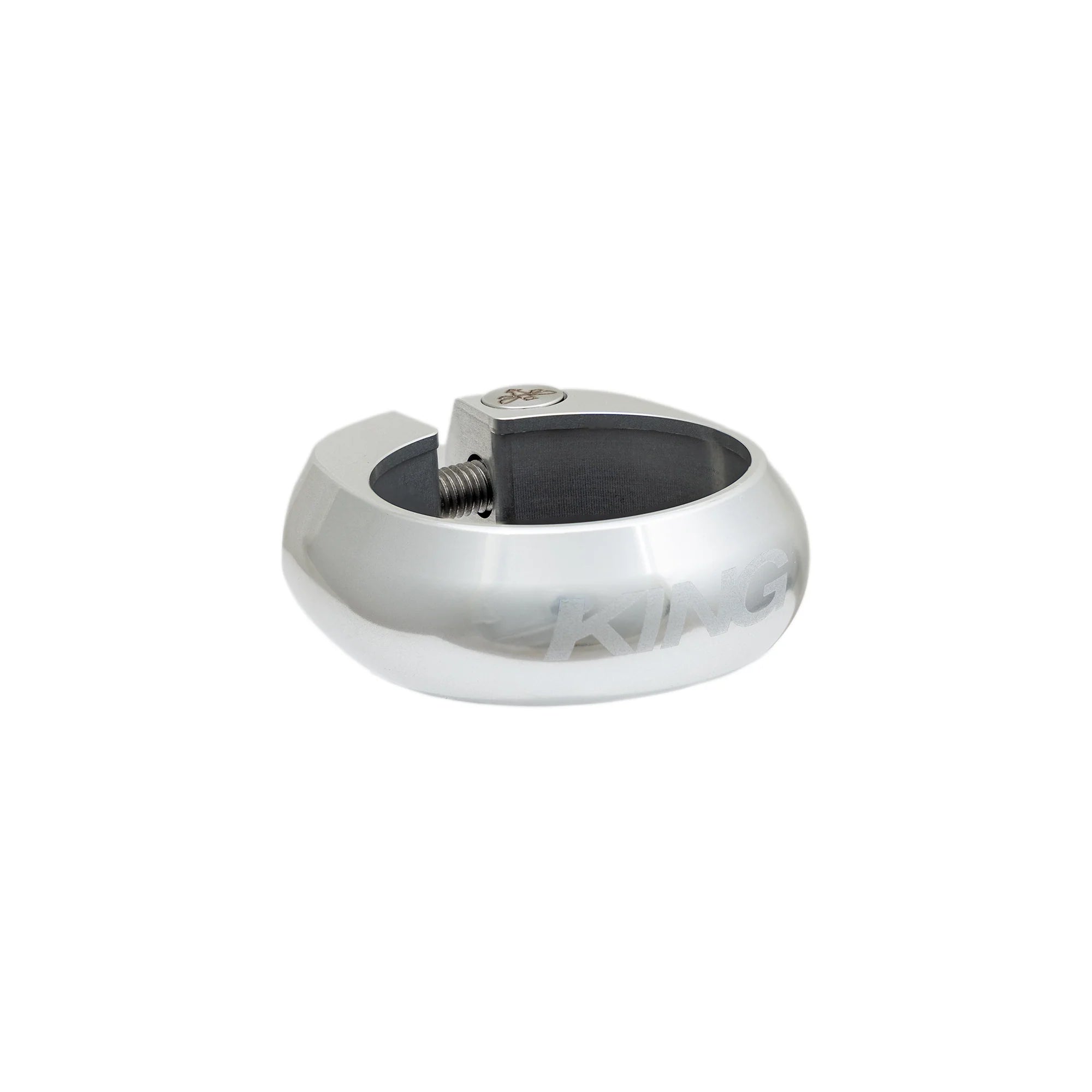

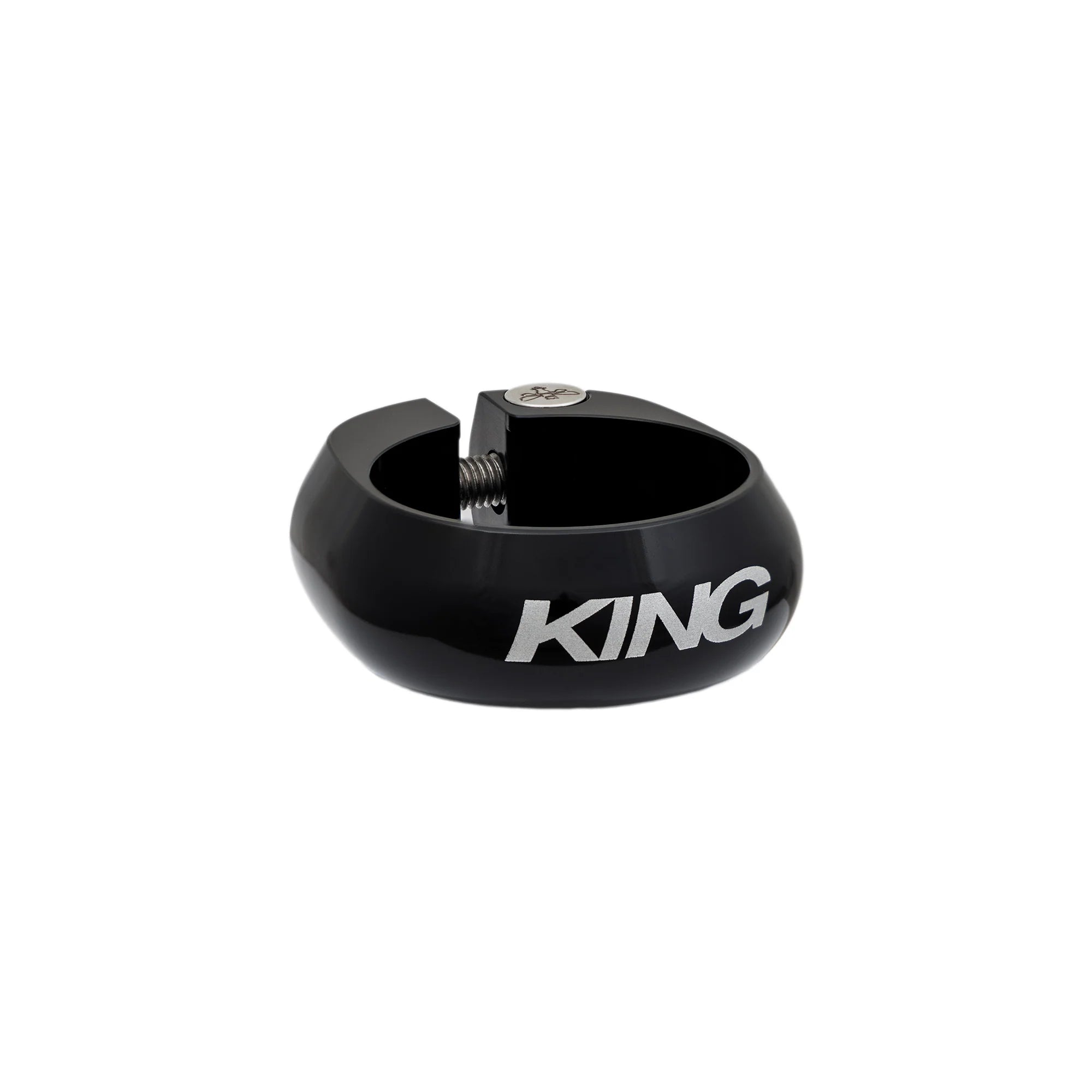

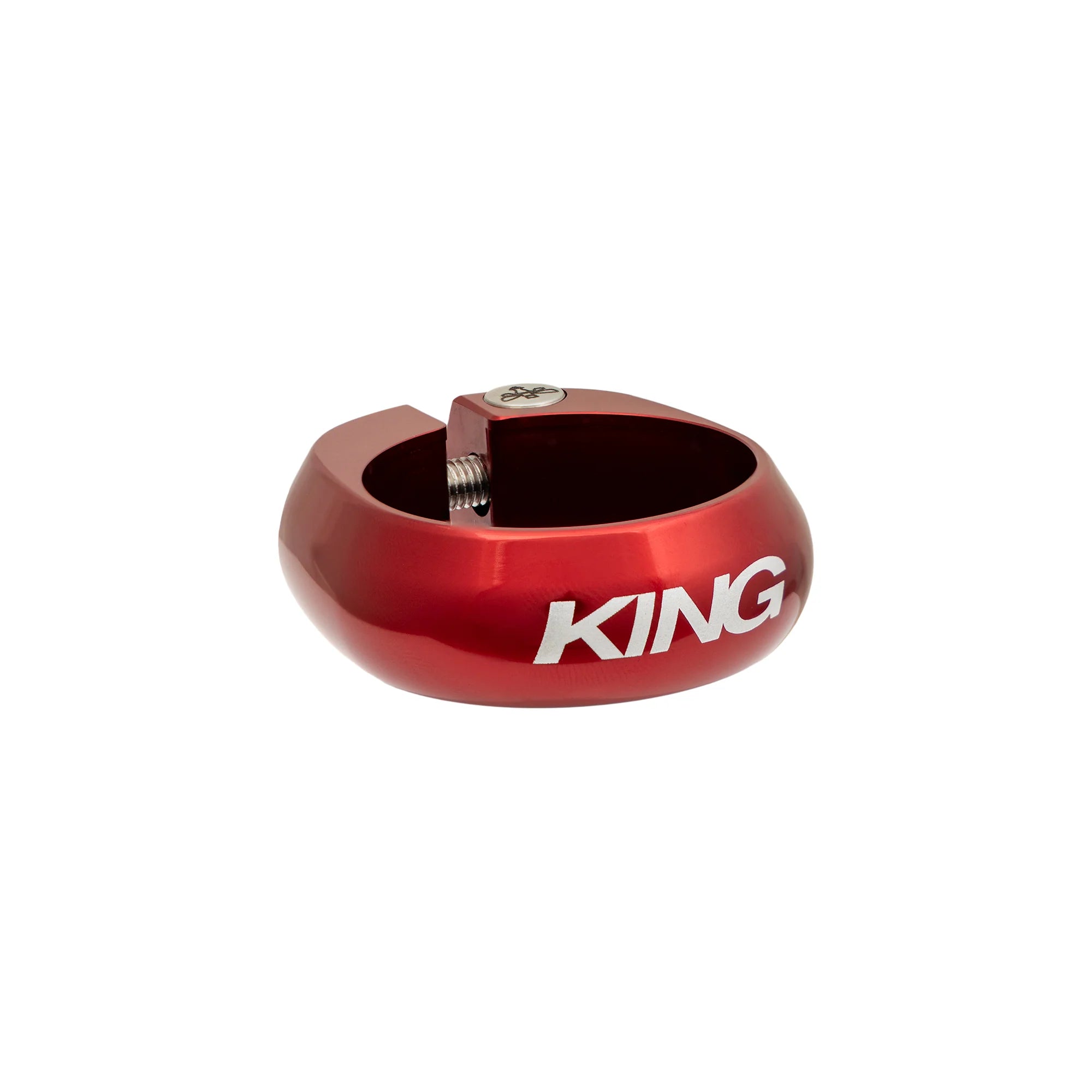

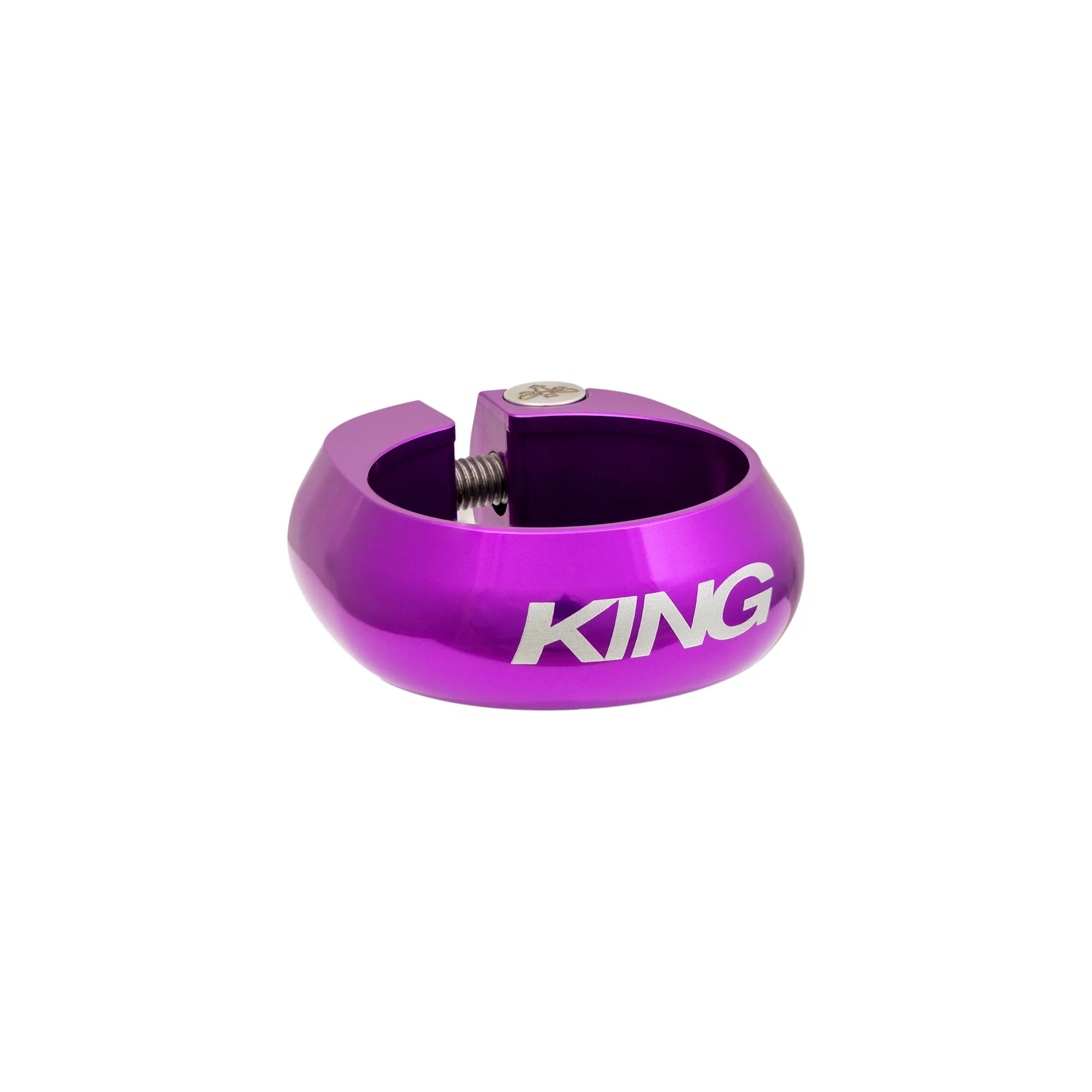

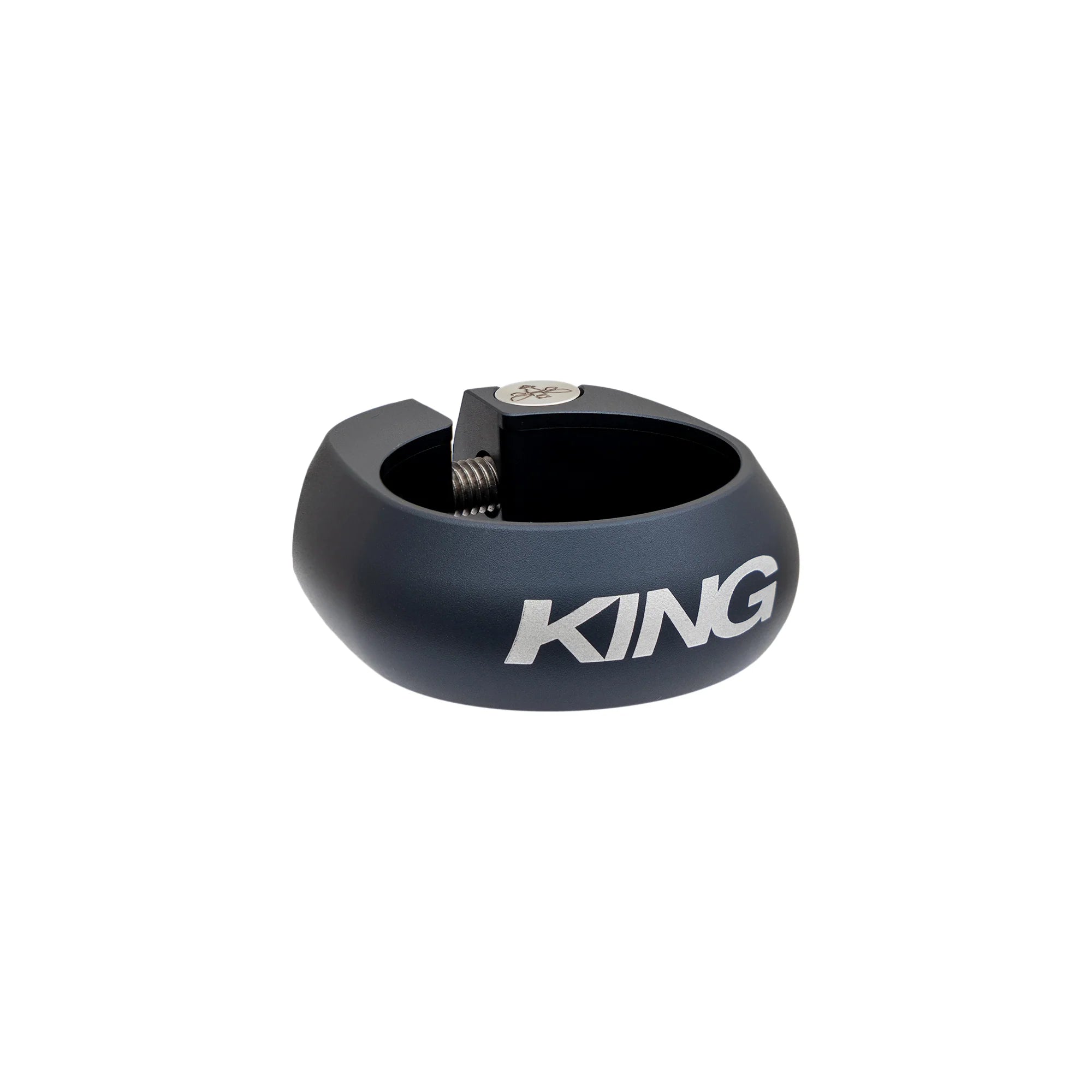

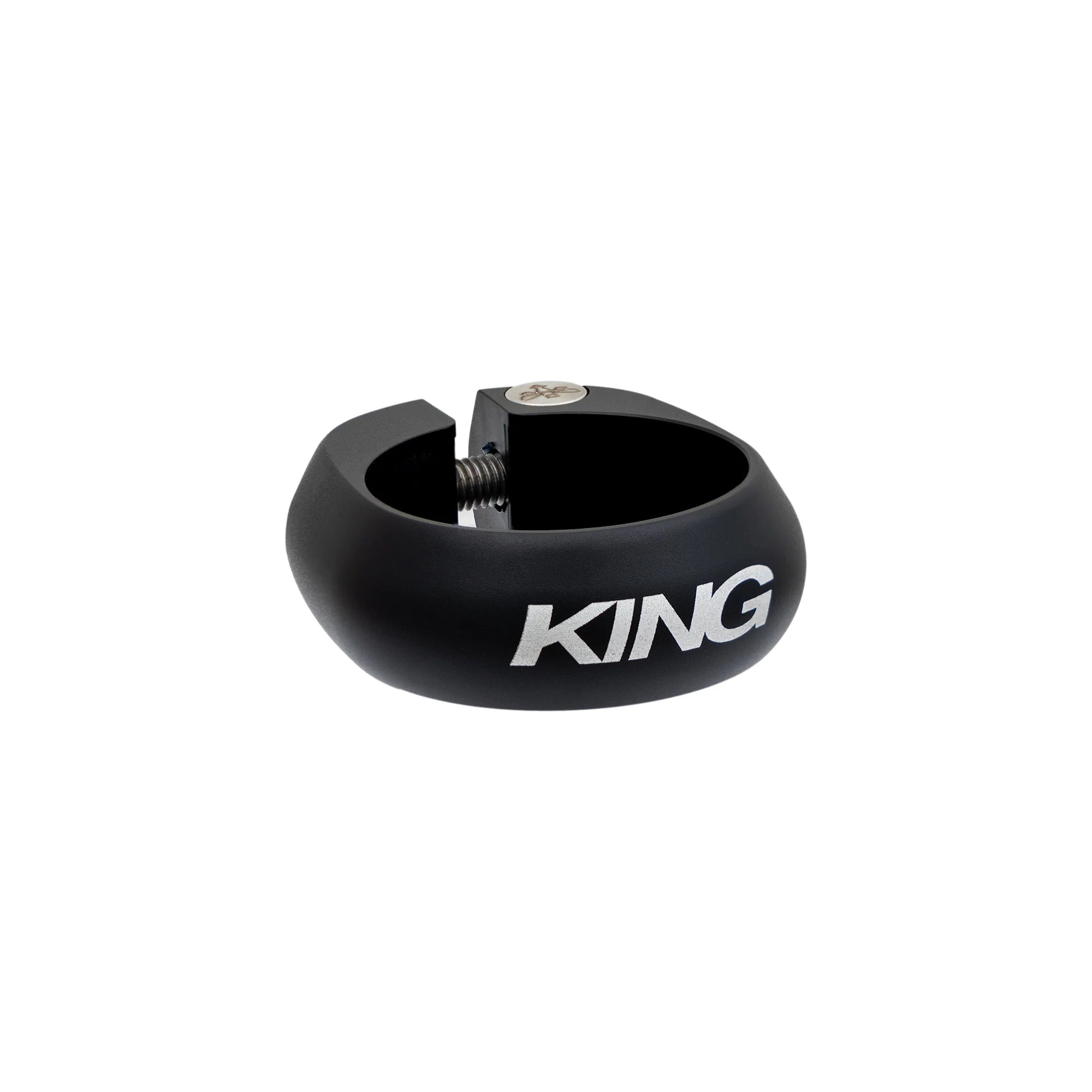

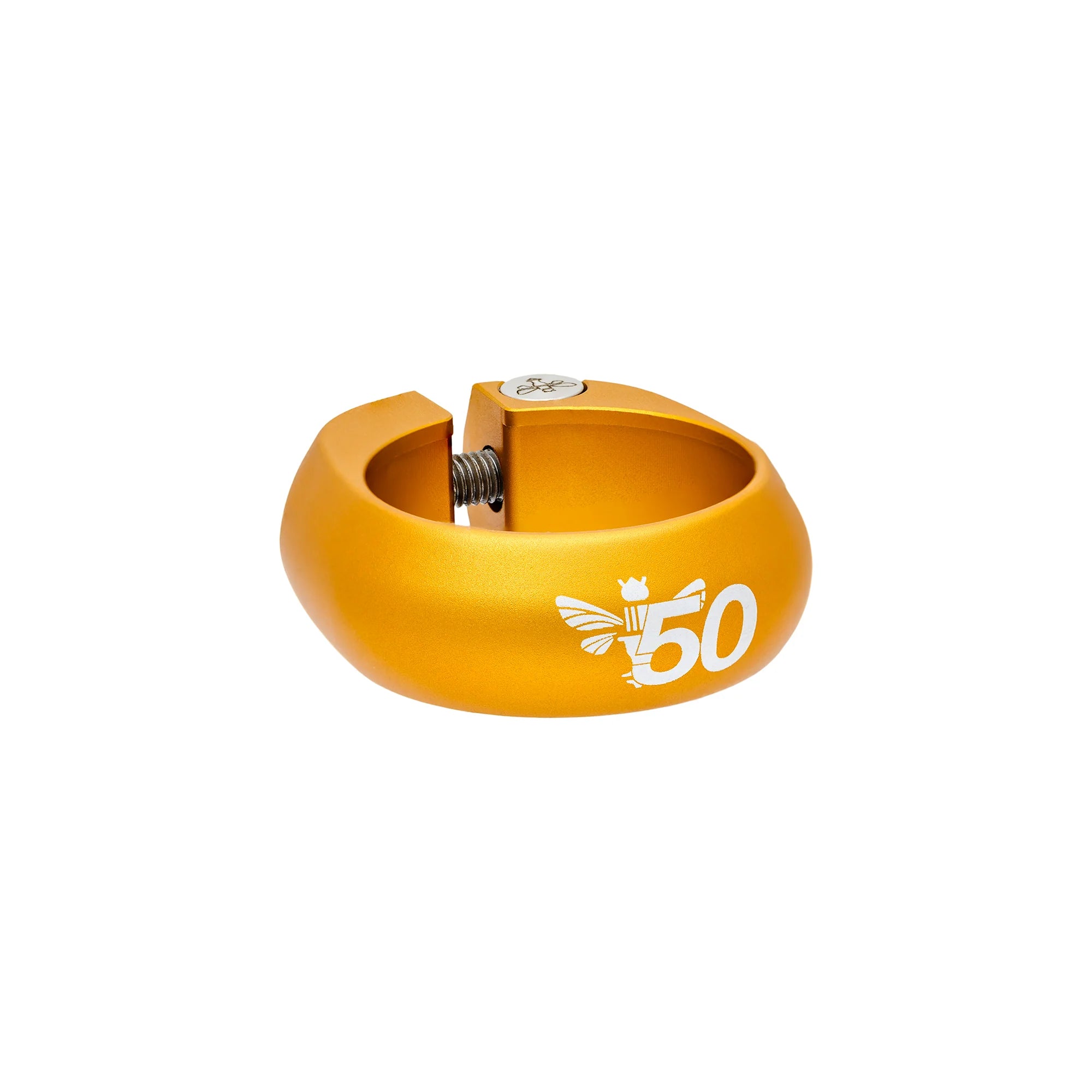

Chris King Seatpost Collar

WHY WE DID THAT

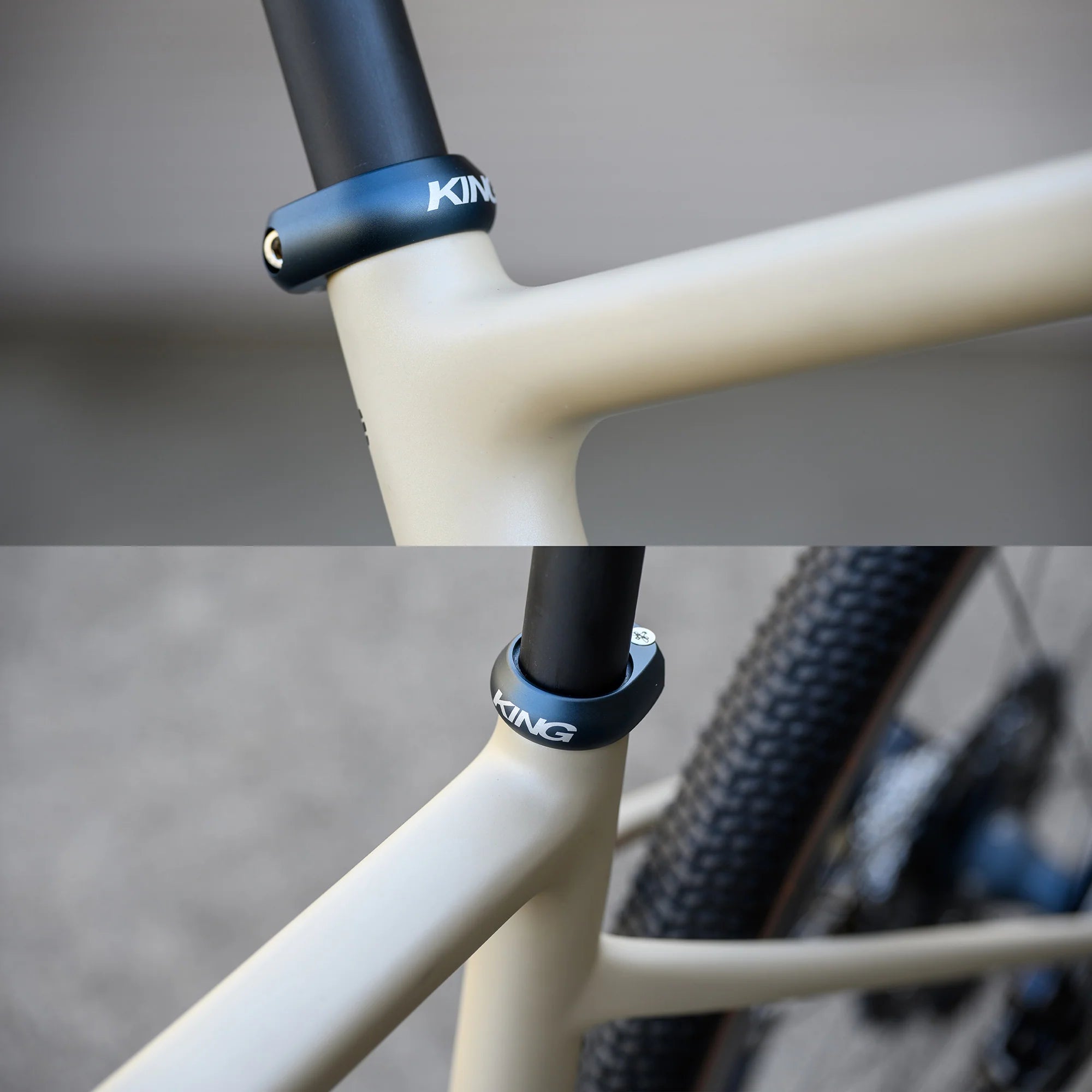

Symmetry is a key factor in sound and look design. For years, King riders have combined our headsets with bottom brackets and hubs to create subtle, stylish color accents. This often left the top of the frame lacking a corresponding visual counterpoint. Does that sound silly to you? Maybe—but it bothered us, many riders asked for it, so we simply designed a seat clamp solution.

WHY YOU WANT HER

Because colors make you happy. Because symmetry and balance make sense to you. Because it's another high-quality component that shows your machine how much you love it. And because it simply looks good.

SPECIFICATIONS

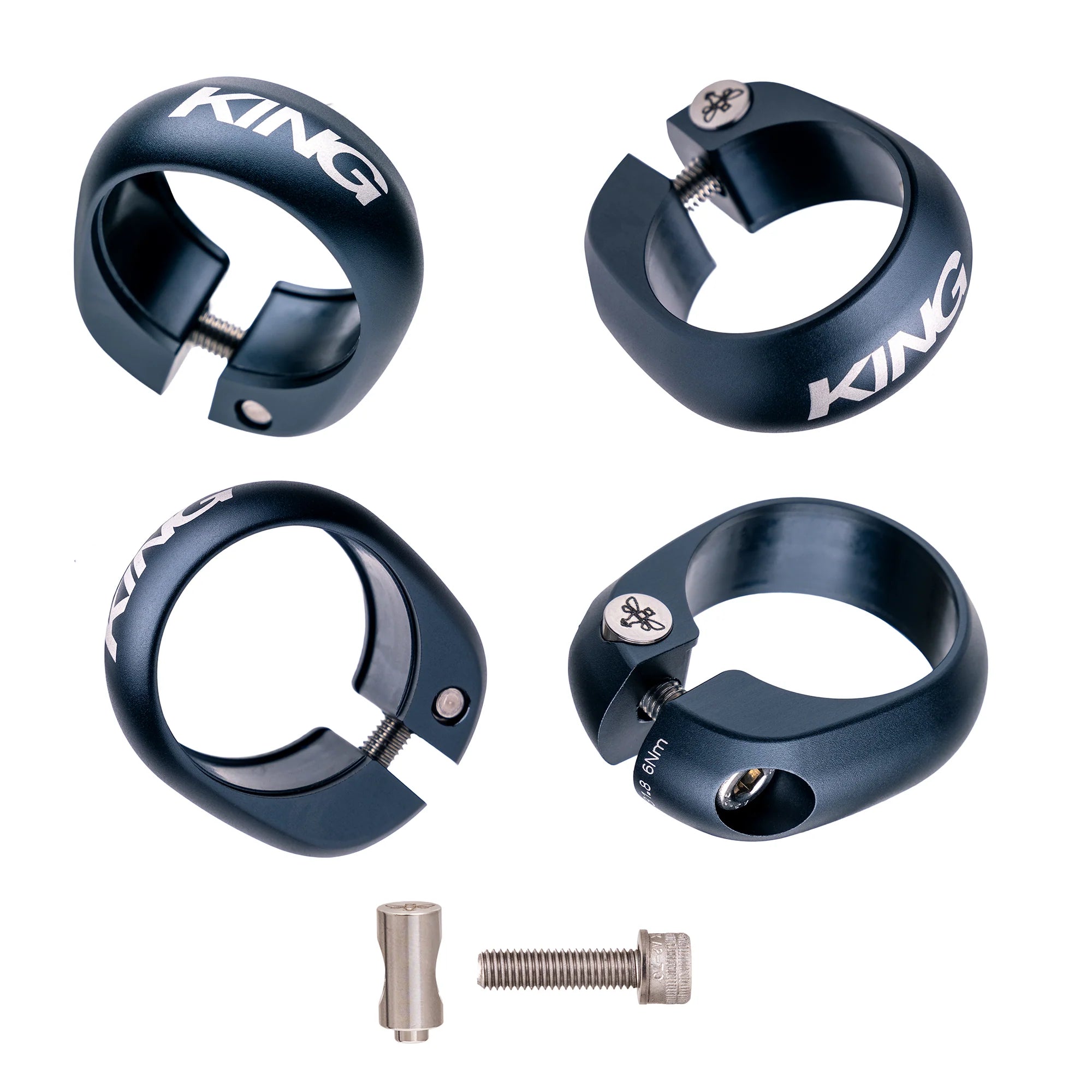

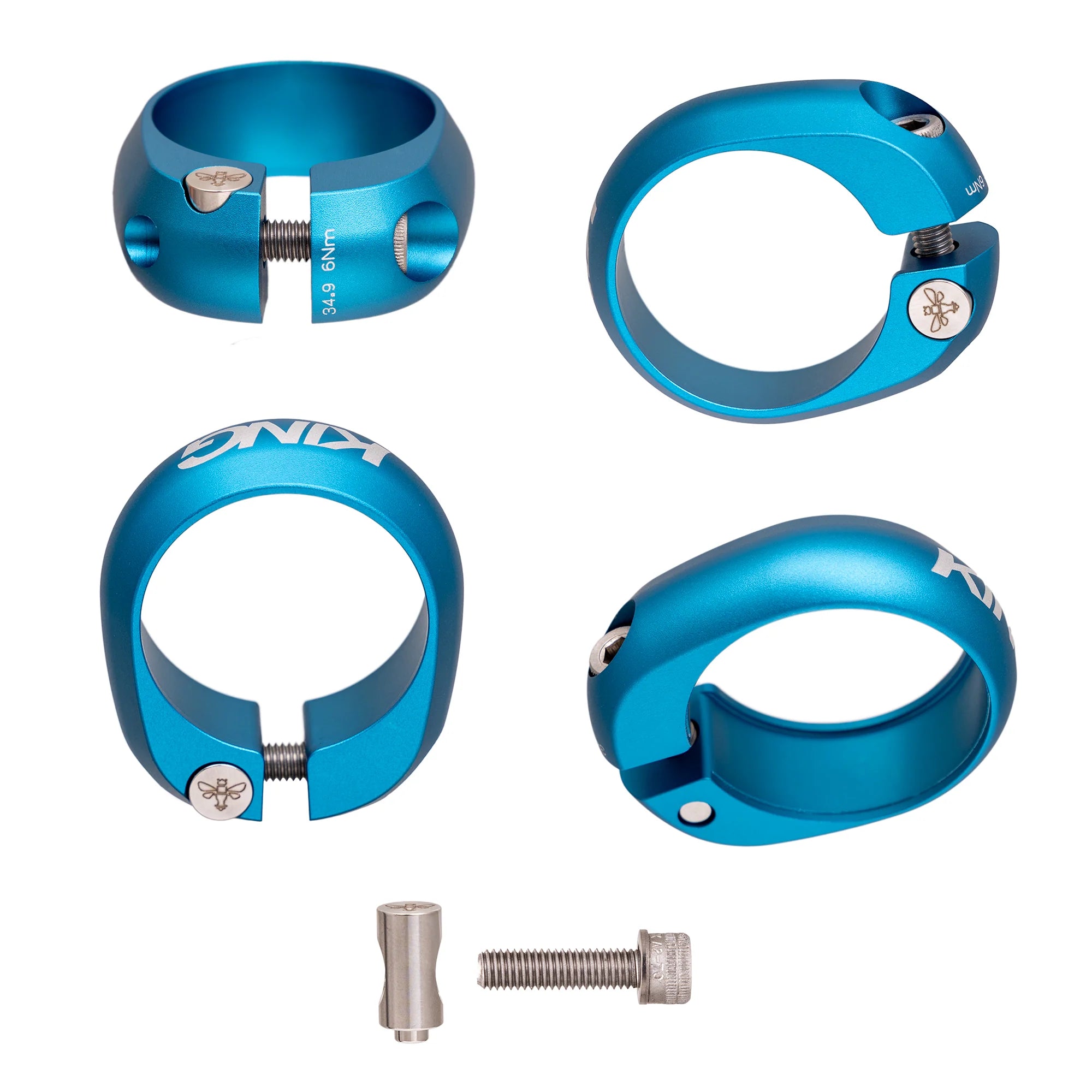

• Aluminum clamp with stainless steel bolt, washer and sleeve nut
• Available in 10 colors, matching King components
• Four sizes: 30.0 / 31.8 / 34.9 / 36.4 mm
• Made in the USA
• Lifetime Warranty

ASSEMBLY INSTRUCTIONS

• Measure the outer diameter of your frame's seat tube before ordering. Each nominal size fits to ±0.5 mm (e.g., 30.0 mm clamp for 29.5–30.5 mm).
• For aluminum, steel or titanium, we recommend applying a small amount of anti-seize compound inside the clamp before tightening.
• Maximum tightening torque: 6 Nm.
• Clamp height: 15.88 mm; clamp height to inside: 14.35 mm.
• The bolt and sleeve nut are lightly lubricated with anti-seize at the factory; re-treat if necessary after cleaning or disassembly.
